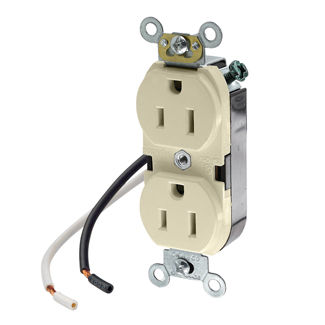

15 Amp Duplex Receptacle/Outlet, Industrial Grade, Self-Grounding

Environmental Specifications

Flammability : Rated V-2 per UL 94

Operating Temperature : -40°C to 60°C

Electrical Specifications

Amperage : 15 A

Current Interrupting : Certified for current interrupting at full rated current

Dielectric Voltage Withstand : 2000V minimum per UL 498

Grounding : Self-Grounding

Maximum Working Voltage : 125V as rated

Pole : 2

Temperature Rise : Max 30C after 250 cycles OL at 200 percent rated current

Voltage : 125 VAC

Wire : 3

Material Specifications

Base Material : Thermoplastic

Bushing : Die Cast

Cover Material : Thermoplastic

Mounting Screws : Triple Combination Head, Steel

Mounting Strap : Steel multipiece with 2 drive pins

Power Contacts : Phosphor Bronze, triple wipe

Terminal Leads : 6", #12 AWG THHN

Wiring : 1 Hot Lead, 1 Neutral Lead

Mechanical Specifications

Lead Identification : Leads identified in accordance with UL 498

Product ID : Ratings are permanently marked on device

Screw Terminal Torque : 14-18 in-lbs

Termination : Pre-Wired Leads (hot and neutral)

Product Features

Amperage : 15 A

Color : Ivory

Device Type : Duplex Receptacle Outlet

Feature 4 : Smooth Face

Grade : Heavy-Duty Industrial Specification Grade

Grounding : Self-Grounding

NEMA : 5-15R

Pole : 2

Standards and Certifications : UL/CSA

Voltage : 125 VAC

Warranty : 10-Year Limited

Wire : 3

Standards and Certifications

ANSI : C-73

CSA C22.2 No. 42 : File 152105

NEMA : WD-6

NOM : 057

UL498 : File E13399
