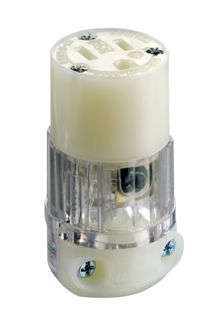

15 Amp, 125 Volt, Straight Blade Connector, Hospital Grade

Electrical Specifications

Amperage : 15 A

Current Interrupting : Certified for current interrupting at full rated current

Dielectric Voltage : Withstands 2000V per UL498

Grounding : Grounding

Pole : 2

Temperature Rise : Max 30C after 250 cycles OL at 200 percent rated current

Voltage : 125 VAC

Wire : 3

Product Features

Brand : Black and White

Color : Transparent

Device Type : Straight Blade Connector

Grade : Hospital

NEMA : 5-15R

Mechanical Specifications

Cord Range : .245 - .700

Product ID : Ratings and NEMA I.D. permanently marked on device

Terminal Accom. : 18-10 AWG

Terminal ID : Brass-Hot, Green-Ground, White-Neutral

Standards and Certifications

ANSI : C-73

CSA C22.2 No. 42 : File LR-406

NEMA : WD-6

NOM : 057

UL 498 : File E13399

UL Fed Spec WC-596 : File E13393

Warranty : 10-Year Limited

Material Specifications

Assembly Screws : Steel, Zinc Plated

Back Cover : Thermoplastic

Blades/Contacts : Solid Brass

Body Material : Super Tough Nylon

Clamp Insert : Nylon

Color : Transparent

Cord-Clamp : Nylon

Terminal Screws : Brass

Wire Module : Nylon

Environmental Specifications

Environment : Dry

Flammability : Rated V-2 per UL 94

Operating Temperature : -40°C to 60°C
