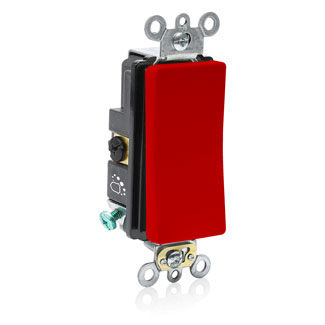

Antimicrobial Treated Decora Plus Rocker Switch, Red

Standards and Certifications

CSA : C22.2

ISO 22196 : Measurement of Antibacterial Activity on Plastics and Other Non-Porous Surfaces

JIS Z 2801:2000 : Test for Antimicrobial Activity and Efficacy

NEMA : WD-1 & WD-6

NOM : NOM-ANCE

UL Standard : UL 20

Material Specifications

Body Material : Thermoplastic Polyester

Cam : Thermoplastic

Contacts : Silver-Alloy

Ground Clips : Brass

Grounding Screw : Steel 8-32

Rocker : Antimicrobial Urea

Strap Material : Galvanized Steel

Terminal Screws : Brass 8-32

Product Features

Amperage : 20 A

Brand : Decora Plus

Color : Red

Device Type : Rocker Switch

Feature : Antimicrobial

Function : 3-Way

Grade : Commercial Specification Grade

Voltage : 120/277 VAC

Mechanical Specifications

Product ID : Stamped on Strap

Screw Terminal Torque : 14-18 in-lbs

Terminal Accom. : 14-#10 AWG back wired; #14-#12 AWG side wired

Terminal ID : Brass-Hot Black-Hot White-Neutral Green-Gnd

Termination : Back or Side Wire

Warranty

Warranty : 10-Year Limited

Electrical Specifications

AC Horsepower Ratings : 1HP-120V 2HP-240V, 16A Max

Amperage : 20 A

Dielectric Voltage : Withstands 1500V for 1 minute

Endurance : 50,000 cycles minimum

Grounding : Self-Grounding

Overload UL20 Test : 100 cycles of OL at 4.8 times rated current

Temperature Rise : Maximum 30 degrees C rise

Voltage : 120/277 VAC

Environmental Specifications

Flammability : Rated HB or better UL94

Operating Temperature : -40°C to 65°C

Storage Temperature : -40ºC to 65ºC
