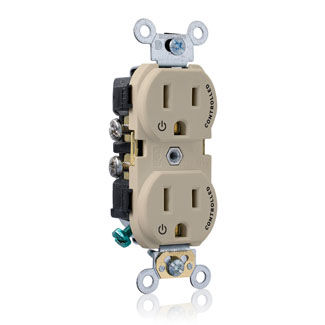

15 Amp Duplex Receptacle/Outlet, Commercial Grade, Self-Grounding

Electrical Specifications

Amperage : 15 Amp

Current Limiting : Full Rated Current

Dielectric Voltage : Withstands 2000V per UL498

Grounding : Self-Grounding

Pole : 2-Pole

Temperature Rise : Max 30C after 100 cycles OL at 150 percent rated current

Voltage : 125 Volt

Wire : 3-Wire

AC Horsepower Ratings

At Rated Voltage : 1/2 HP

Product Features

Color : Ivory

Device Type : Duplex Receptacle Outlet

Feature 4 : Smooth Face

Grade : Commercial Specification Grade

Grounding : Self-Grounding

NEMA : 5-15R

Material Specifications

Body Material : Nylon

Color : Ivory

Face Material : Nylon

Ground Clips : Brass-Plated

Grounding Screw : Steel 8-32

Line Contacts : Brass Double Wipe .031 Thick

Strap Material : Zinc-Plated Steel

Terminal Screws : Steel 8-32

Mechanical Specifications

Product ID : Ratings are permanently marked on device

Terminal Accom. : 14-10 AWG

Terminal ID : Brass-Hot, Green-Ground, Silver-Neutral

Termination : Side Wire

Standards and Certifications

ANSI : C-73

CSA C22.2 No. 42 : File 152105

NEMA : WD-2 WD-6

NOM : 057

UL Fed Spec WC-596 : File E13399

UL498 : File E13399

Warranty : 10-Year Limited

Environmental Specifications

Flammability : Rated V-2 per UL94

Operating Temperature : -40C to 60C
