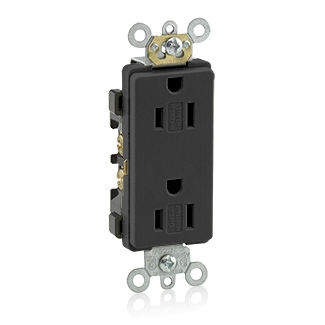

15 Amp Decora Plus Duplex Receptacle/Outlet, Commercial Grade, Tamper-Resistant, Self-Grounding

Environmental Specifications

Operating Temperature : -40°C to 60°C

AC Horsepower Ratings

At Rated Voltage : 1/2 HP

Material Specifications

Body Material : Nylon

Clamp Nuts : Zinc-Plated Steel

Face Material : Nylon

Ground Clips : Brass-Plated

Grounding Screw : Brass 8-32

Line Contacts : Brass Double Wipe .031 Thick

Terminal Screws : Brass 10-32

Yoke : Zinc-Plated Steel

Mechanical Specifications

Product ID : Ratings are permanently marked on device

Terminal Accom. : 14-10 AWG

Terminal ID : Brass-Hot, Green-Ground, White-Neutral

Product Features

Amperage : 15 A

Body Material : Nylon

Color : Black

Face Material : Nylon

Feature : Tamper-Resistant

Grounding : Self-Grounding

NEMA : 5-15R

Pole : 2

Standards and Certifications : UL/CSA

Strap Material : Steel

Termination : Side Wire

Voltage : 125 VAC

Warranty : 10-Year Limited

Wire : 3

Standards and Certifications

CSA C22.2 No. 42 : File LR-406

NEMA : WD-6

NOM : 057

UL498 : File E13399

Electrical Specifications

Current Limiting : Full Rated Current

Dielectric Voltage : Withstands 2000V per UL498

Temperature Rise : Max 30C after 100 cycles OL at 150 percent rated current
