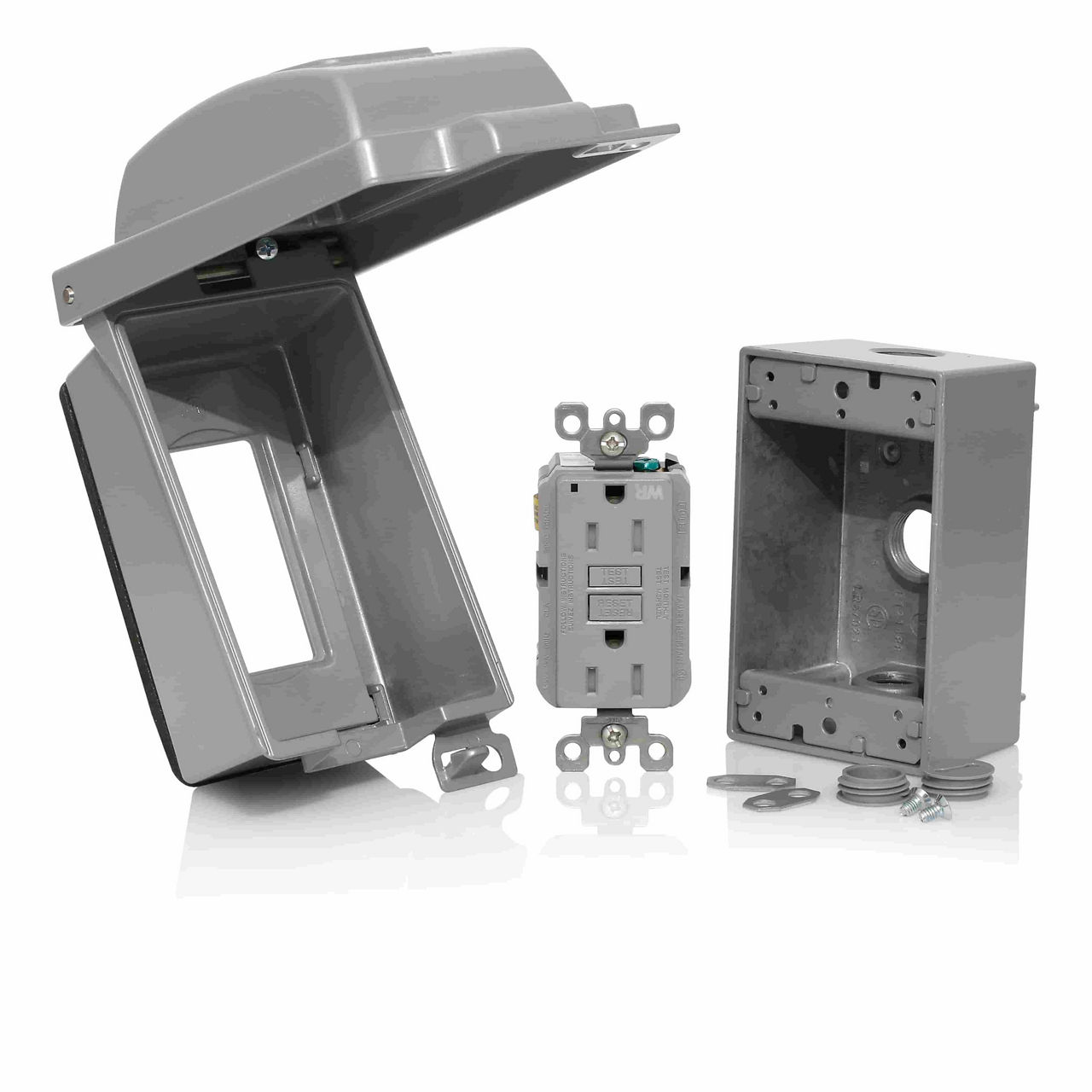

1-Gang Weatherproof Receptacle Kit, Aluminum, Gray

Standards and Certifications

ANSI : C-73

CSA C22.2 No. 42 : Yes

CSA-C22.2 No. 144.1-06 : File LR-57811

Fed Spec WC-596 : Yes

MIL-SPEC : A-A-55459-SB

NOM : Yes

UL 943 : File E48380

UL498 : Yes

Mechanical Specifications

Product ID : Ratings are permanently marked on device

Termination : Back & Side

Wire : 3

Cover Specifications

Color : Gray

Gang : 1

Material : Aluminum

Orientation : Vertical

Standards and Certifications : UL/CSA

Type : Extra-Duty

Warranty : 2-Year Limited

Box Specifications

Box Material : Aluminum

Dimensions : Three ½” holes

Electrical Specifications

Amperage : 15 A

Dielectric Voltage : Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06

Grounding : Green Ground Screw

Pole : 2

Short Circuit Current Rating : 10KA

Temperature Rise : Max 30C after 100 cycles OL at 150 percent rated current

Trip Level : Class A, 5mA plus or minus 1mA

Voltage : 125 VAC

Wire : 3

Environmental Specifications

Operating Temperature : -35C to +66C

Product Features

Brand : SmartlockPro

Color : Gray

Feature : Self-Test Receptacle|Self Closing Lid|Weather Resistant|Tamper-Resistant

Grade : Residential/Commercial Specification Grade

NEMA : 5-15R

Material Specifications

Body Material : Polycarbonate

Face Material : Polypropylene

Grounding Screw : Stainless Steel

Line Contacts : Brass Double-Wipe .031 Thick

Tamper Resistant : Yes

Terminal Screws : Stainless Steel
