Wireless Load Control Power Pack, Dimming, 0-10V

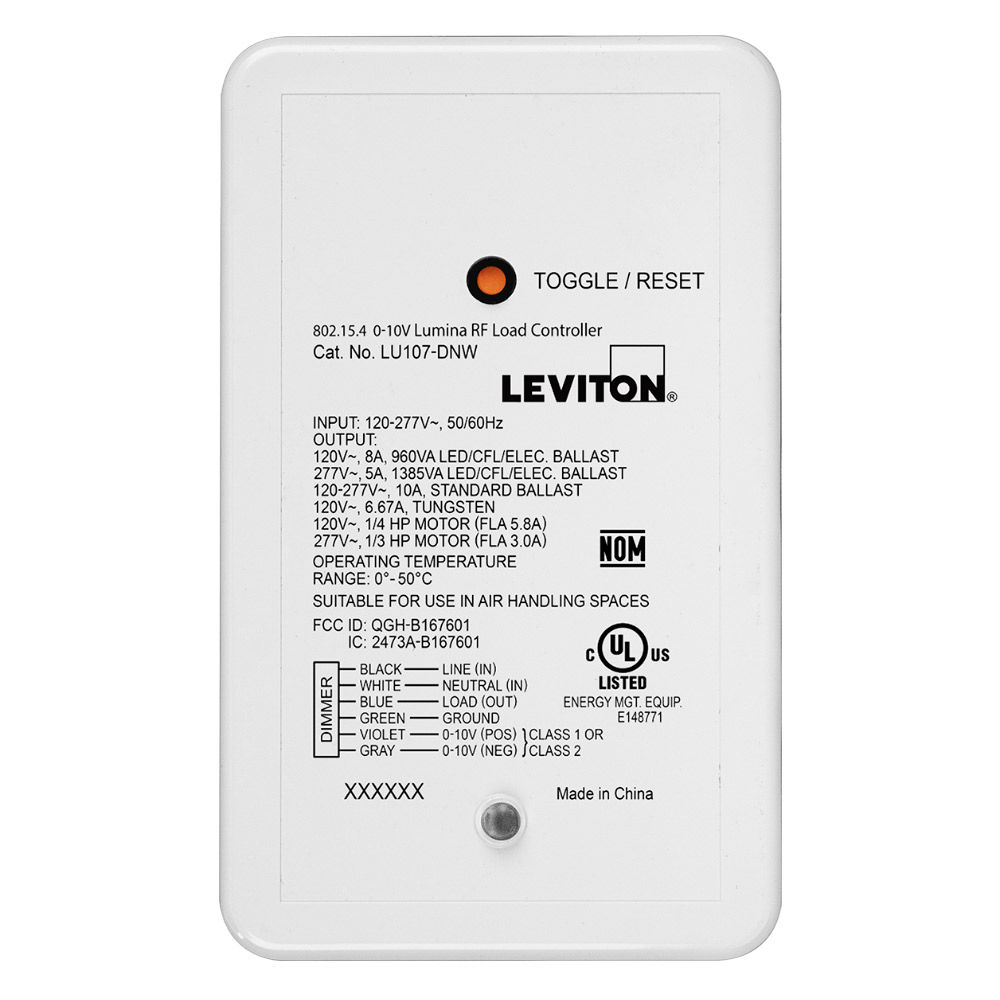

LU107-DNW

Wireless 10A 0-10V Dimming Power Pack

The Wireless Load Control Devices offers three models for 0-10V dimming, phase cut dimming and general purpose switching control including receptacle circuit control.

800W Phase Cut Dimming Power Pack (LU04P) allows for dimming of full phase loads
10A 0-10V Dimming Power Pack (LU107) can be used to dim any 0-10V controlled load
20A ON/OFF Switching Power Pack (LU20S) is an ON/OFF relay...

Where to Buy

Add to Project List

Product Support

UPC Code: 078477296202

Country of Origin : China

Product Information

Updated

Wireless mesh network—self-healing mesh network has no hardwired backbone and connects all products together for a more robust and reliable wireless system
Robust and reliable—mechanically held latching relay for high inrush (LED) and large commercial loads
Compatible with multiple load types—LED, HID, inductive, fluorescent, etc.
Integrated High Inrush Stability (H.I.S.) relay—for ON/ OFF control
LED status indicators
Local toggle/test/program switch
Complies with IEEE 802.15.4 standards —for domestic and international wireless networks
Code compliant energy management functionality— can be used as a component in a system to meet energy code requirements for IECC, ASHRAE 90.1, and Title 24, Part 6 space/area control, dimming, manual-ON/OFF, occupancy/vacancy control and automatic shutoff requirements
