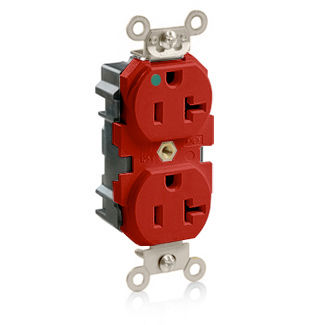

Lev-Lok Duplex Receptacle

Environmental Specifications

Operating Temperature : -40°C to 60°C

Material Specifications

Base Material : Nylon

Bushing : Solid Brass

Cover Material : Nylon

Ground Clips : Brass

Line Contacts : 0.040” Thick Solid Brass

Locking Pins : Solid Brass

Mounting Screws : Triple Combination Head, Steel

Mounting Strap : Galvanized Steel with Riveted Ground Contacts

Shutter Mechanism : Delrin® Acetal

Standards and Certifications

ANSI : C-73

NEMA : WD-1 & WD-6

NOM Certified : 057

RoHS : Compliant

Warranty : 10-Year Limited

cULus : Listed

Product Features

Brand : Lev-Lok

Color : Red

Device Type : Duplex Receptacle Outlet

Feature : Tamper-Resistant|Smooth Face

Grade : Heavy-Duty Hospital Grade

NEMA : 5-20R

Electrical Specifications

Amperage : 20 A

Current Interrupting : Certified for current interrupting at full rated current

Dielectric Voltage : Withstands 2000V per UL498

Grounding : Self-Grounding

Maximum Working Voltage : 125V as rated

Pole : 2

Temperature Rise : Max 30C after 250 cycles OL at 200 percent rated current

Voltage : 125 VAC

Wire : 3

AC Horsepower Ratings

Horsepower Rating : 1 HP

Mechanical Specifications

Product ID : Ratings are permanently marked on device

Termination : Modular
