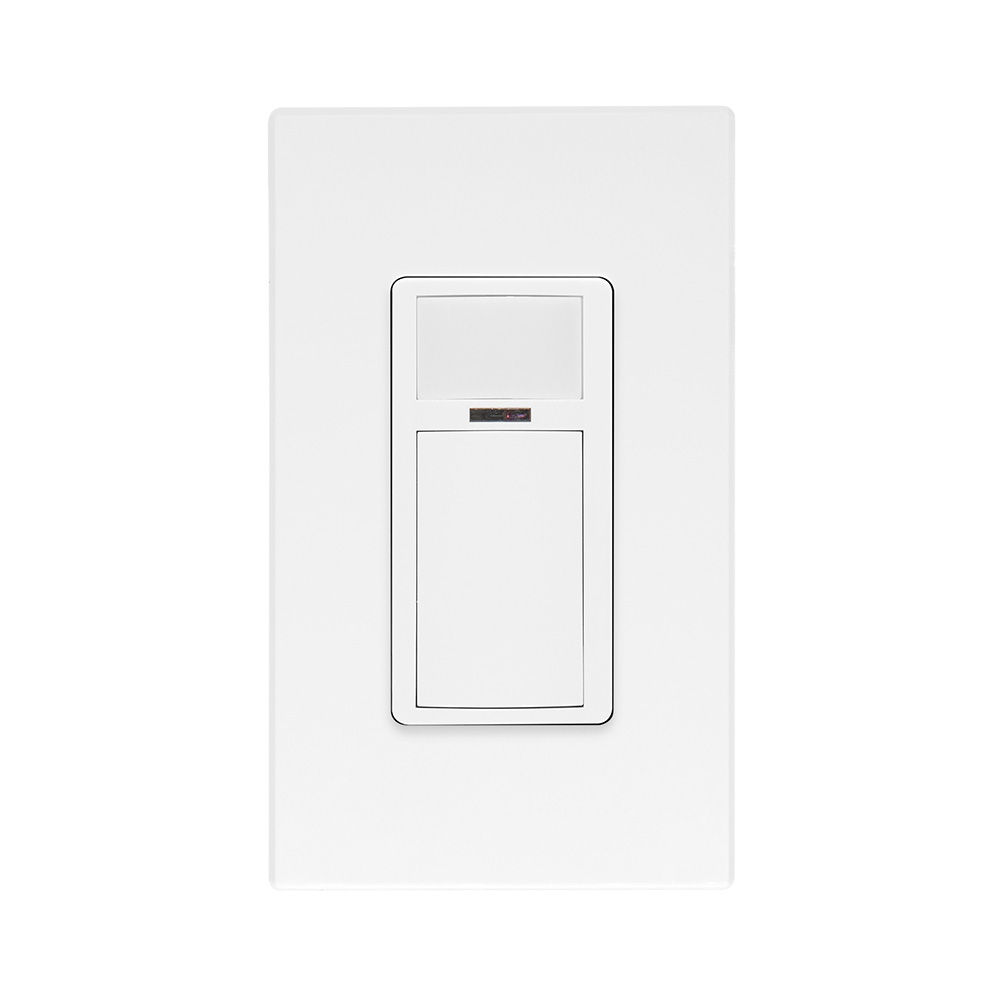

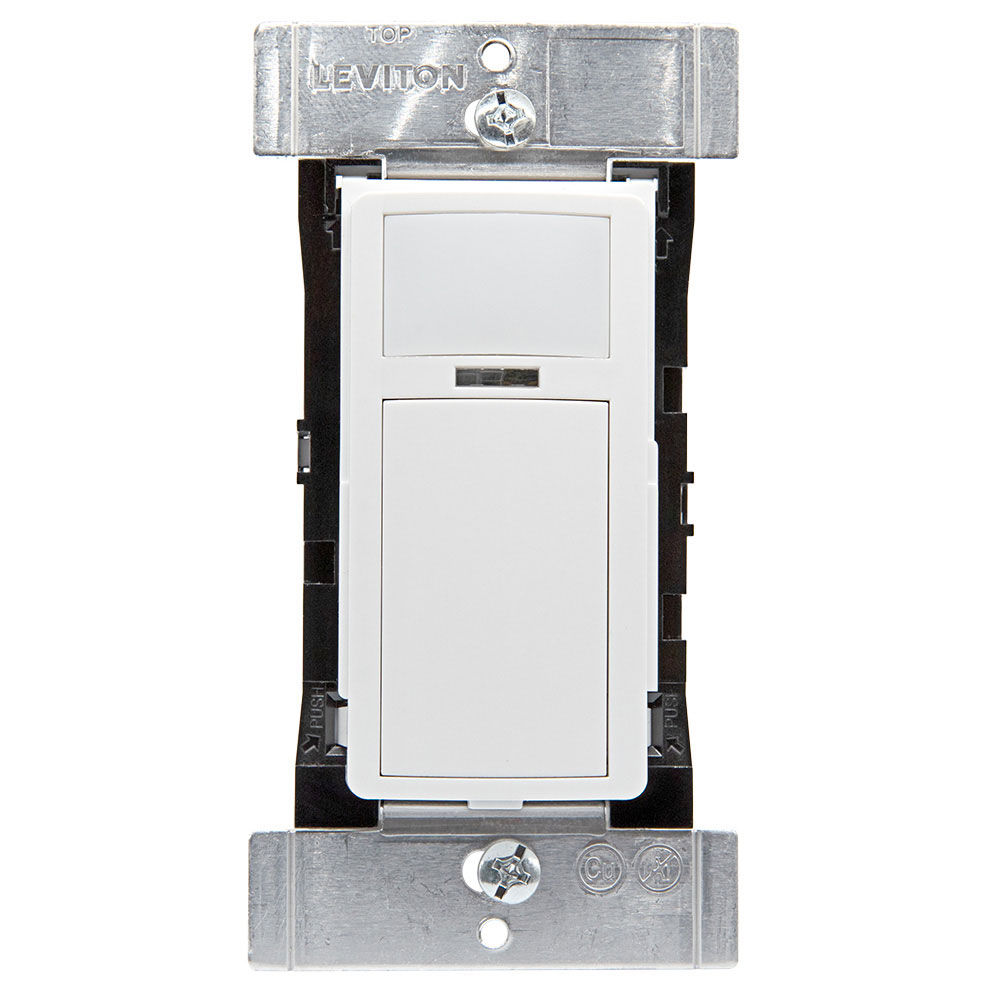

The Leviton Smart Sensor uses Passive Infrared (PIR) detection technology to monitor a room for occupancy using a segmented, tamper resistent lens. When a person passes in or out of a sensor zone, the sensor detects motion and switches the lights ON. The lights will remain ON as long as an occupant is moving through the sensor zones. The ODS15-Ixx ’s vacancy mode features a Manual-ON/Auto-OFF for installations where manual-ON switching is required for energy code applications.
Configuration of ODS15-Ixx is made using the Leviton Smart Sensor App from a smartphone or other Bluetooth® enabled Android or iOS device. Simple configuration can also be applied using pushbutton setup for several popular preconfigured options. Ideal for non-residential and commercial spaces up to 1,100 SF including offices, meeting rooms, and lobbies.
Input Current : 120V: Standby: 0.2W Max: 0.5W+Load Current - 277V: Standby: 0.3W Max: 0.6W+Load Current
Load Rating : See Product Specification and Data Sheet
Neutral Wire Connection : Required
Voltage : 120-277 VAC
Environmental Specifications
Storage Temperature Range : -40° to 185°F (-40° to 85°C)
Can be used to comply with IECC, ASHRAE 90.1, and 2019 Title 24, Part 6 occupancy/vacancy sensing and manual control requirements
Fits in a standard wallbox and gangable with other units
Controls General Purpose plug loads up to 20A and LED lighting loads up to 10A
One relay module for single-level switching
180° field-of-view provides approximately 1,100 square feet of coverage
Maximum sensing distance in front of the sensor is 30-40 feet and 15-20 feet on either side
Advanced configuration can be performed using the Leviton Smart Sensor App on any Bluetooth enabled Android or iOS device: Set operating mode to Auto-ON/Auto-OFF or Manual-ON/Auto-OFF
Adjust the sensitivity of the sensor to increase or decrease coverage area
Adjust timeouts
Activate the nightlight and select nightlight colors
Add daylighting hold-off and select target daylighting levels
Set a security code to lock configuration settings
Out-of-the-box configuration default mode: Auto-ON/Auto-OFF with 10-minute time out
Sensitivity set to 75%
Nightlight and daylighting disabled
n-a
n-a
This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
