Leviton Power Distribution Box
PB103-W
DISCONTINUED

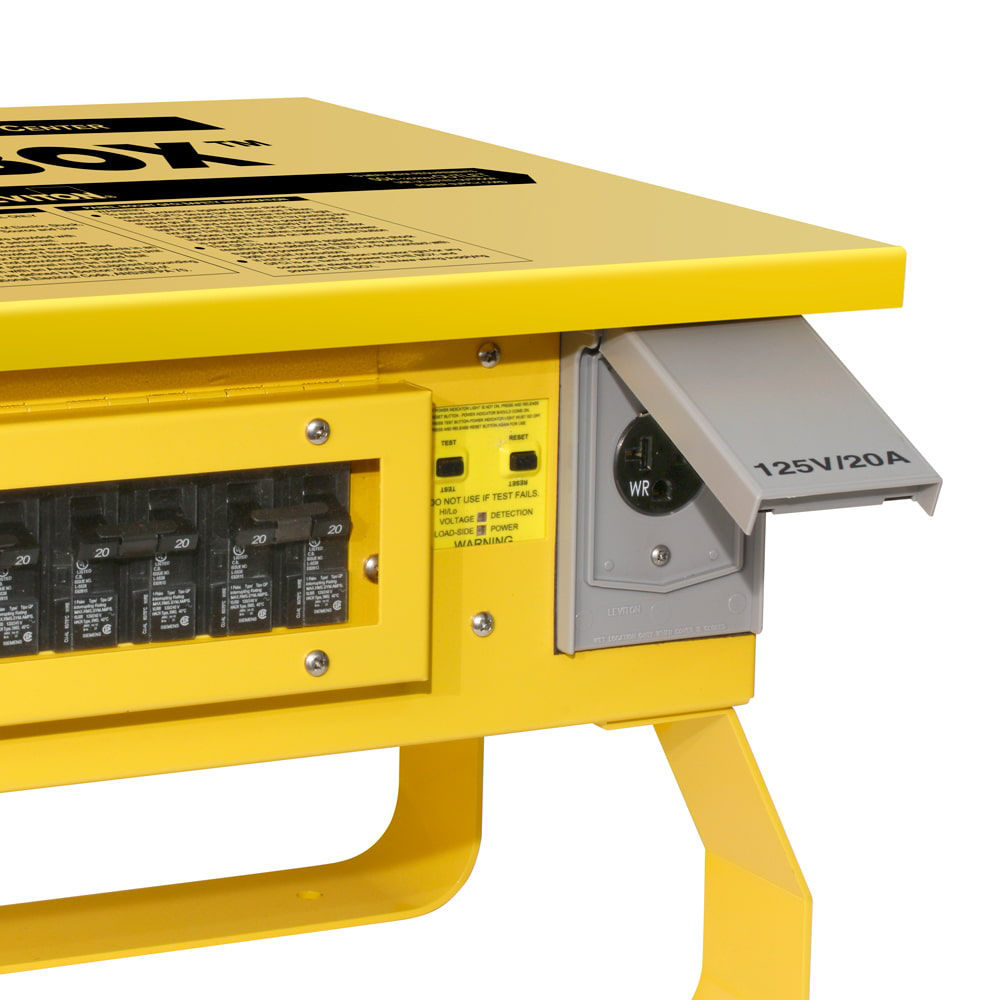

Leviton’s The Box™ is rated 50A 125/250 Volt with six (6) weather-resistant NEMA 5-20R straight blade single GFCI protected receptacles, one (1) NEMA L6-30R locking non-GFCI protected receptacle, one (1) non-GFCI protected 50A 125/250V California Style power inlet (Leviton # CS6375) and one (1) non-GFCI protected 50A 125/250V California Style power receptacle (Leviton # CS6369). All include weatherproof covers.
Leviton Powe...
Leviton’s The Box™ is rated 50A 125/250 Volt with six (6) weather-resistant NEMA 5-20R straight blade single GFCI protected receptacles, one (1) NEMA L6-30R locking non-GFCI protected receptacle, one (1) non-GFCI protected 50A 125/250V California Style power inlet (Leviton # CS6375) and one (1) non-GFCI protected 50A 125/250V California Style power receptacle (Leviton # CS6369). All include weatherproof covers.
Leviton Power Distribution Boxes deliver portable power when and where you need it. Built to withstand the heavy abuse in typical construction sites, entertainment venues, or anywhere requiring remote power.
30 Amp 250V Outlet : One L6-30R Locking Non-GFCI Protected
Feed-Through Outlet : 50A 125/250 Volt 3P 4W, Grounding Non-NEMA
Power Inlet : 50A 125/250 Volt 3P 4W, Grounding Non-NEMA
Product ID : Ratings and NEMA I.D. permanently marked on device
Terminal ID : Brass-Hot, Green-Ground, Silver-Neutral
Product Features
Color : Yellow
Electrical Specifications
Dielectric Voltage : Withstands 1500V per UL498
Grounding : GFCI Grounding
Power Center Rating : 50A 125/250 Volt
SCCR : 2 kA
Temperature Rise : Max 30C after 50 cycles OL at 150 percent rated current
Trip Level : 5mA plus or minus 1mA
Environmental Specifications
Flammability : Rated V-2 per UL 94
Housing Rating : UL Listed for Outdoor Use
Operating Temperature : -35C to +66C
