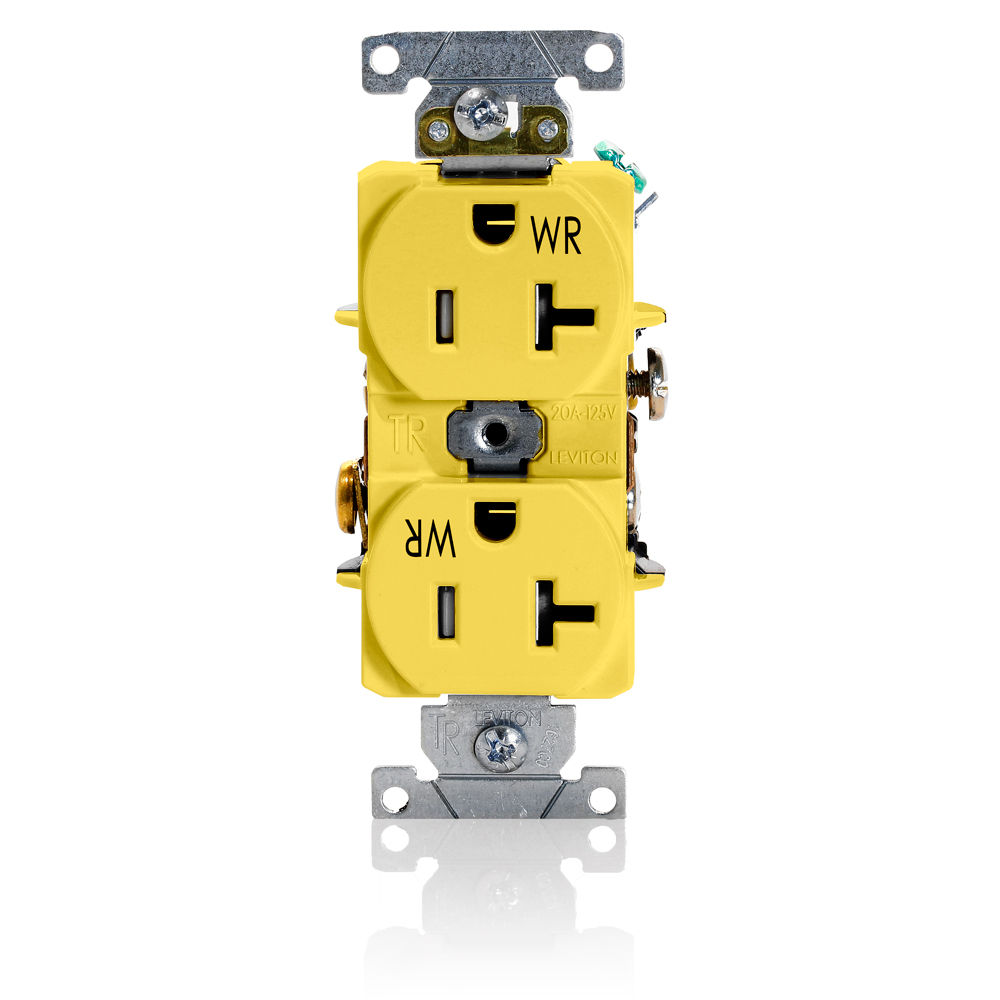

Weather- and Tamper-Resistant Duplex Receptacle, 20 Amp, 125 Volt

Material Specifications

Body Material : Nylon

Clamp Nuts : Zinc-Plated Steel

Color : Yellow

Face Material : Nylon

Ground Clips : Nickel-Plated Brass

Grounding Screw : Nickel-Plated Brass

Line Contacts : Nickel-Plated Brass Triple-Wipe .040 Thick

Mounting Screws : Stainless Steel

Shutter Mechanism : Delrin® Acetal

Strap Material : Nickel Plated Brass

Terminal Screws : Nickel-Plated Brass 10-32

Product Features

Color : Yellow

Device Type : Duplex Receptacle Outlet

Feature : Weather and Tamper-Resistant|Smooth Face

Grade : Heavy-Duty Industrial Specification Grade

NEMA : 5-20R

Electrical Specifications

Current Limiting : Full Rated Current

Dielectric Voltage : Withstands 2000V per UL498

Grounding : Self-Grounding

Temperature Rise : Max 30C after 100 cycles OL at 150 percent rated current

Mechanical Specifications

Product ID : Ratings permanently marked on device

Screw Terminal Torque : 14-18 in-lbs

Terminal Accom. : 14-10 AWG

Terminal ID : Brass-Hot, Green-Ground, Silver-Neutral

Termination : Back or Side Wire

AC Horsepower Ratings

At Rated Voltage : 1 HP

Standards and Certifications

ANSI : C-73

CSA C22.2 No. 42 : File 152105

NEMA : WD-2 WD-6

NOM : 057

UL 498 : File E13399

Warranty : 2-Year Limited
