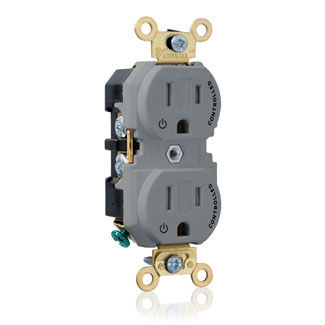

15 Amp Duplex Receptacle/Outlet, Industrial Grade, Tamper-Resistant, Self-Grounding

AC Horsepower Ratings

At Rated Voltage : 1/2 HP

Environmental Specifications

Flammability : Rated V-2 per UL 94

Operating Temperature : -40°C to 75°C

Material Specifications

Body Material : Nylon

Face Material : Nylon

Ground Clips : Brass

Grounding Screw : Brass 8-32

Line Contacts : Triple-Wipe .040" High Performance Brass Alloy

Strap Material : Brass .050"

Terminal Clamp : Zinc-Plated Steel

Terminal Screws : Brass 10-32

Mechanical Specifications

Product ID : Ratings are permanently marked on device

Screw Terminal Torque : 14-18 in-lbs

Terminal Accom. : 14-10 AWG

Terminal ID : Brass-Hot, Green-Ground, Silver-Neutral

Termination : Back or Side Wire

Wire Type : Solid or Stranded Building Wire

Electrical Specifications

Amperage : 15 A

Dielectric Voltage : Withstands 2000V per UL498

Grounding : Self-Grounding

Pole : 2

Temperature Rise : Max 30C after 250 cycles OL at 200 percent rated current

Voltage : 125 VAC

Wire : 3

Warranty

Warranty : 10-Year Limited

Standards and Certifications

ANSI : C-73

Applicable Standards : UL 498, CSA C22.2 No. 42, FedSpec W-C 596

Certification/Listing : UL, CSA, NOM-ANCE

NEMA : WD-1 & WD-6

Product Features

Color : Gray

Device Type : Duplex Receptacle Outlet

Feature : Two Outlets Marked Controlled|Tamper-Resistant|Smooth Face

Grade : Extra Heavy-Duty Industrial Specification Grade

NEMA : 5-15R
