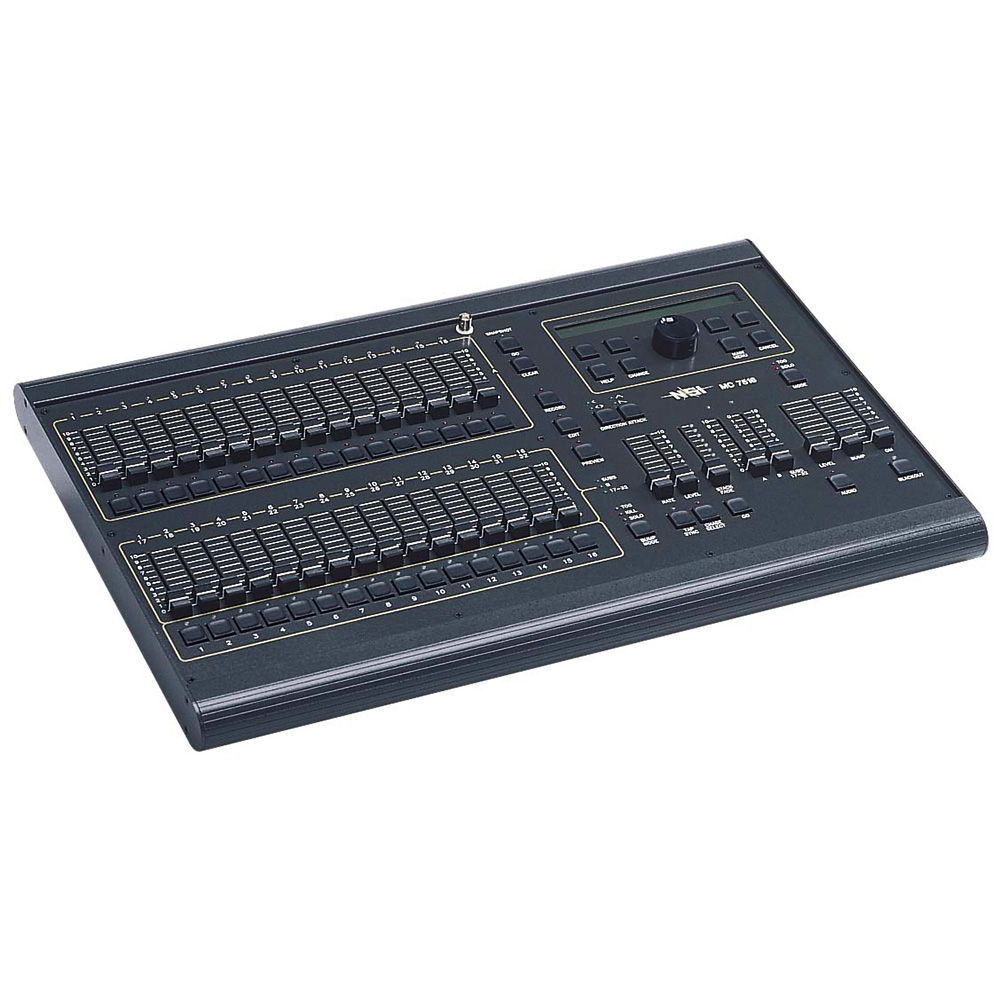

16/32 Channel, Lighting Control Console

N7516

DISCONTINUED

16/32 channel memory console, 256 memory scenes, 16 submasters.

Catering to the advanced lighting designer, the 7500 series features operational modes such as cue stacking, level sensitive chasing and up to 512 memory scene capability. The encoder wheel and LCD readout make onboard editing quick and easy.

UPC Code: 078477121603

Country of Origin : Mexico

Product Information

Updated

(s’ouvre dans un nouvel onglet)

Installation and Operation Guide - 7500 Series(s’ouvre dans un nouvel onglet)

10/08/2023 View(s’ouvre dans un nouvel onglet)
(s’ouvre dans un nouvel onglet)

Product Specification and Data Sheet(s’ouvre dans un nouvel onglet)

10/08/2023 View(s’ouvre dans un nouvel onglet)

Mechanical Specifications
Handles : 32
Output : DMX and MPX
Electrical Specifications
Voltage : 120/230 VAC
Product Features
Audio Input : Yes
Circuits/Channels : 16/32
Control Style : DMX
Cues : 16 Independent Cue Stacks
DMX Channels : 512
MIDI : Yes
Memory Scene : 256
Product Category : Controls
Product Line : MC 7500
Product Type : Lighting Console
Submaster : 16
Submaster Pages : 16

16/32 individual control channels
256 user programmable memory scenes
16 user programmable level sensitive chase effects
16 independent cue stacks allow combinations of memory scenes and chases to be arranged as steps in a playback sequence. Program precise fade times to each step or use the manual stack fader from step to step
Chase control functions include master level, rate, instant on/off or the fade rate between each chase step and the direction of the chase
Dual split dipless crossfaders proportionally vary the intensity of levels between scenes A and B
Individual channel bump buttons with master bump level slider
Channel and scene bump button modes include momentary, toggle on/off, kill mode (allows only one button to toggle
at a time) and solo mode which overrides console output except for the bump buttons that are pressed
Soft patch up to 512 dimmers
Audio sync
MIDI show control and SMPTE time code via MIDI to activate scenes
On board help function
Fully protected non-volatile EEPROM memory (10 year retention)
Universal internal power supply
Preheat function can be set from 0-20% of output level providing faster lamp response and longer lamp life Console locks include Record and Set up, which prevent unauthorized or accidental changes to programming or configuration
Dimensional Data – in.[cm] lbs.[kg]
7516 7524 7536
Width 23.00 [58.4] 29.00 [73.7] 35.00 [88.9]
Depth 15.00 [38.1] 15.00 [38.1] 15.00 [38.1]
Height 4.00 [10.2] 4.00 [10.2] 4.00 [10.2]
Shipping Weight 21.00 [9.5] 24.00 [10.9] 27.00 [12.3]
NSI 128 channel Micro-Plex out (3 pin XLR male and female)DMX512 digital control (female 5 pin XLR)
MIDI in/out/through (5 pin DIN)
Audio in (RCA type female)
Optional 37 pin 0-10 volt analog control port
Optional AMX192 out (4 pin XLR)
