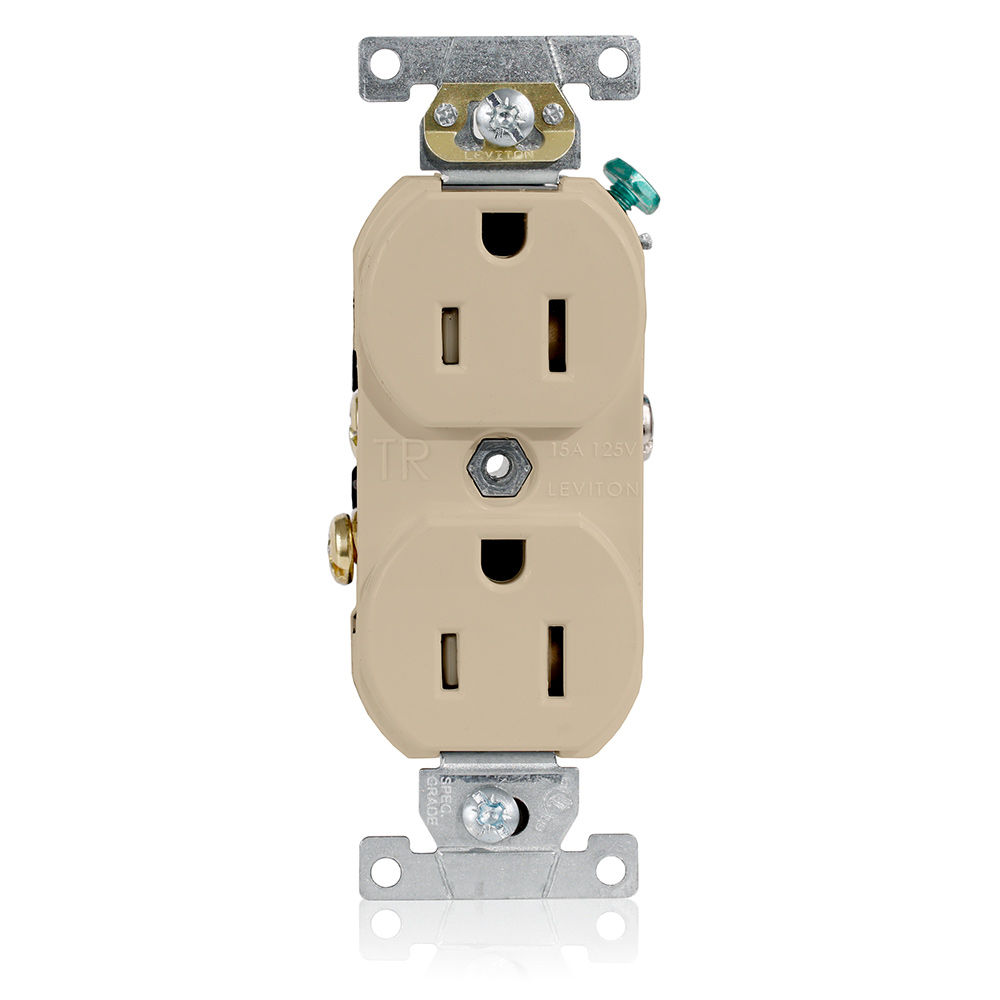

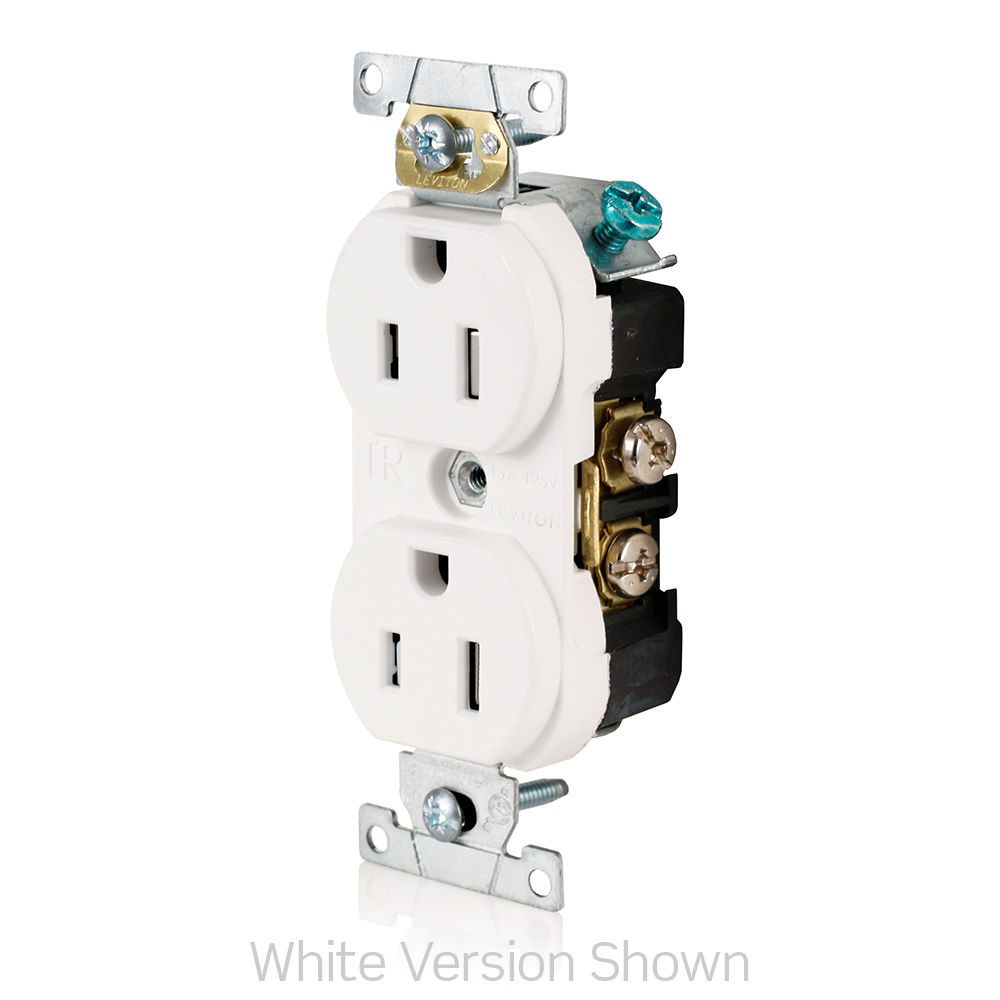

Tamper-Resistant Duplex Receptacle, 15 Amp, 125 Volt

Electrical Specifications

Amperage : 15 A

Current Limiting : Full Rated Current

Dielectric Voltage : Withstands 2000V per UL498

Grounding : Self-Grounding

Pole : 2

Temperature Rise : Max 30C after 100 cycles OL at 150 percent rated current

Voltage : 125 VAC

Wire : 3

Environmental Specifications

Operating Temperature : -40°C to 60°C

Material Specifications

Body Material : Thermoplastic

Color : Ivory

Face Material : Thermoplastic

Ground Clips : Brass

Grounding Screw : Plated Steel

Line Contacts : Brass .031 Thick

Strap Material : Zinc-Plated Steel

Terminal Screws : Plated Steel

Product Features

Color : Ivory

Device Type : Duplex Receptacle Outlet

Feature : Tamper-Resistant|Smooth Face

Grade : Commercial Specification Grade

NEMA : 5-15R

Mechanical Specifications

Product ID : Ratings permanently marked on device

Screw Terminal Torque : 14-18 in-lbs

Terminal Accom. : 14-10 AWG

Terminal ID : Brass-Hot, Green-Ground, Silver-Neutral

Termination : Back or Side Wire

Standards and Certifications

ANSI : C-73

CSA C22.2 No. 42 : File 152105

NEMA : WD-1 WD-6

NOM : 057

UL 498 : File E13399

Warranty : 10-Year Limited
