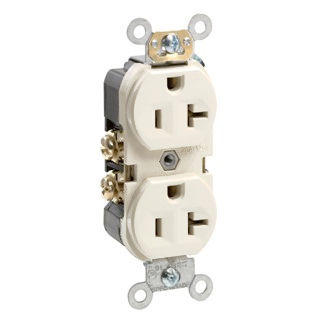

20 Amp Duplex Receptacle/Outlet, Commercial Grade, Self-Grounding

Environmental Specifications

Operating Temperature : -40°C to 60°C

Material Specifications

Body Material : Polypropylene

Clamp Nuts : Brass

Color : Light Almond

Face Material : Polypropylene

Ground Clips : Brass

Grounding Screw : Steel 8-32

Line Contacts : Brass Triple-Wipe .031 Thick

Strap Material : Zinc-Plated Steel

Terminal Screws : Brass 8-32

Electrical Specifications

Amperage : 20 A

Current Limiting : Full Rated Current

Dielectric Voltage : Withstands 2000V per UL498

Grounding : Self-Grounding

Pole : 2

Temperature Rise : Max 30C after 100 cycles OL at 150 percent rated current

Voltage : 125 VAC

Wire : 3

Standards and Certifications

ANSI : C-73

CSA C22.2 No. 42 : File 152105

NEMA : WD-1 & WD-6

NOM : 057

UL498 : File E13399

Warranty : 10-Year Limited

AC Horsepower Ratings

At Rated Voltage : 1 HP

Mechanical Specifications

Product ID : Ratings are permanently marked on device

Screw Terminal Torque : 14-18 in-lbs

Terminal Accom. : 14-10 AWG

Terminal ID : Brass-Hot, Green-Ground, Silver-Neutral

Termination : Back or Side Wire

Product Features

Color : Light Almond

Device Type : Duplex Receptacle Outlet

Feature 4 : Indented Face

Grade : Commercial Specification Grade

Grounding : Self-Grounding

NEMA : 5-20R
