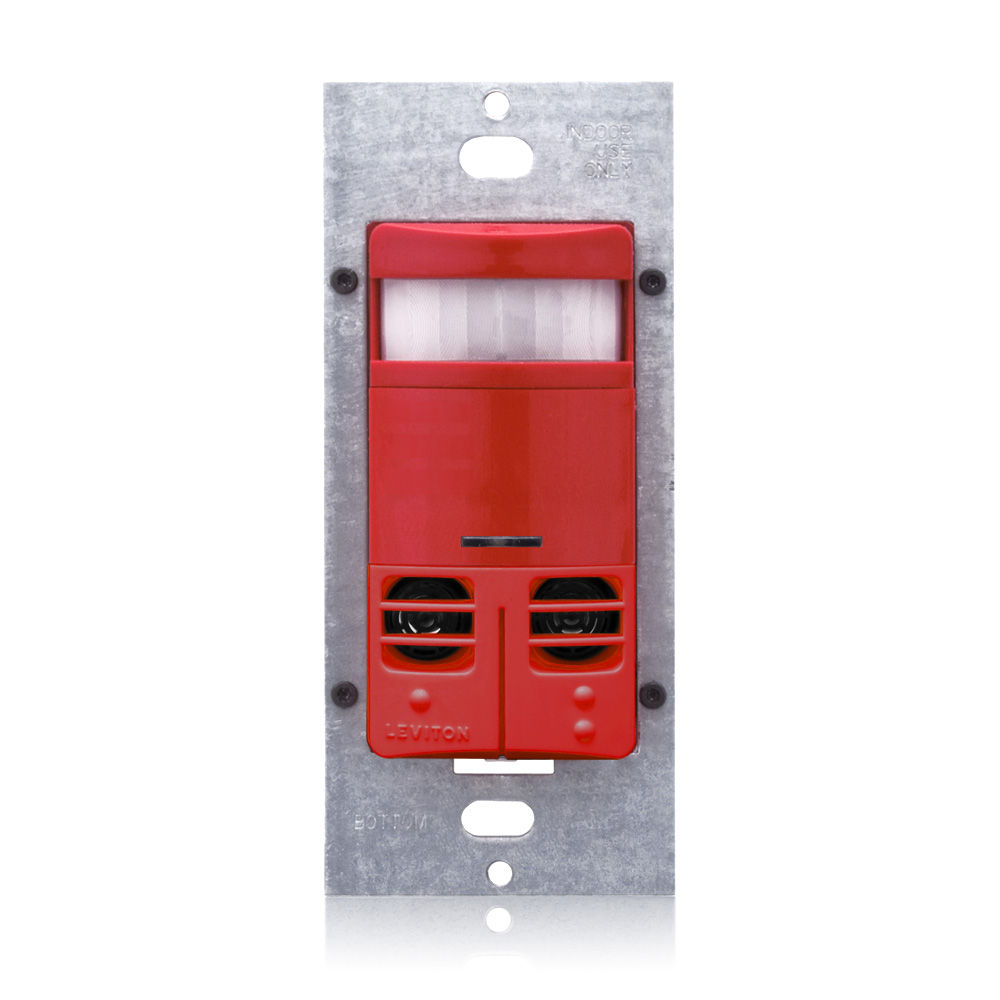

Occupancy Sensor - OSSMD-GDR

Updated

(s’ouvre dans un nouvel onglet)

Dual Relay Decora Wall Switch Multi-Technology Occupancy Sensors(s’ouvre dans un nouvel onglet)

01/22/2024 View(s’ouvre dans un nouvel onglet)

Updated

(s’ouvre dans un nouvel onglet)

Dual Relay Decora Wall Switch Multi-Technology Occupancy Sensors(s’ouvre dans un nouvel onglet)

01/22/2024 View(s’ouvre dans un nouvel onglet)
(s’ouvre dans un nouvel onglet)

OSSMD Instruction Sheet - English(s’ouvre dans un nouvel onglet)

12/21/2023 View(s’ouvre dans un nouvel onglet)
(s’ouvre dans un nouvel onglet)

OSSMD Instruction Sheet - French(s’ouvre dans un nouvel onglet)

12/21/2023 View(s’ouvre dans un nouvel onglet)
(s’ouvre dans un nouvel onglet)

OSSMD Instruction Sheet - Spanish(s’ouvre dans un nouvel onglet)

12/21/2023 View(s’ouvre dans un nouvel onglet)
(s’ouvre dans un nouvel onglet)

Technology Intro - Occupancy Sensor Automation(s’ouvre dans un nouvel onglet)

12/21/2023 View(s’ouvre dans un nouvel onglet)
(s’ouvre dans un nouvel onglet)

Application Note - Changes for Title 24 Energy Efficiency Standards(s’ouvre dans un nouvel onglet)

12/21/2023 View(s’ouvre dans un nouvel onglet)
(s’ouvre dans un nouvel onglet)

Application Note - Energy Policy Act of 2005(s’ouvre dans un nouvel onglet)

12/21/2023 View(s’ouvre dans un nouvel onglet)
(s’ouvre dans un nouvel onglet)

Application Note - IECC vs ASHRAE 90(s’ouvre dans un nouvel onglet)

12/21/2023 View(s’ouvre dans un nouvel onglet)
(s’ouvre dans un nouvel onglet)

Application Note - IRS and Energy Management(s’ouvre dans un nouvel onglet)

12/21/2023 View(s’ouvre dans un nouvel onglet)
(s’ouvre dans un nouvel onglet)

Application Note - Ready to Achieve LEED Points(s’ouvre dans un nouvel onglet)

12/21/2023 View(s’ouvre dans un nouvel onglet)
(s’ouvre dans un nouvel onglet)

Application Note - Ultrasonic and Multi-Technology Sensors(s’ouvre dans un nouvel onglet)

12/21/2023 View(s’ouvre dans un nouvel onglet)
(s’ouvre dans un nouvel onglet)

Technical Article - Occupancy Sensing and Ballast Life(s’ouvre dans un nouvel onglet)

12/21/2023 View(s’ouvre dans un nouvel onglet)
(s’ouvre dans un nouvel onglet)

Specification - Occupancy Sensor Lighting Controls(s’ouvre dans un nouvel onglet)

12/21/2023 View(s’ouvre dans un nouvel onglet)
(s’ouvre dans un nouvel onglet)

USMCA_List 07112023(s’ouvre dans un nouvel onglet)

12/21/2023 View(s’ouvre dans un nouvel onglet)

Environmental Specifications
Operating Temperature : 32° to 104°F (0° to 40°C)
Relative Humidity : 20% to 90% non-condensing
Storage Temperature Range : 14° to 185°F (-10° to 85°C)
Warranty
Warranty : 5-Year Limited
Type
Product Type : Occupancy Sensor
Mechanical Specifications
Mounting Type : Wall Switch
Relay Type : Dual Relay
Size : Height 4.06" (103.2mm), Width 1.75" (44.4mm), Depth 1.83" (47mm), Install Depth 1.35" (34.4mm), Install Height 2.06" (66.2mm)
Switch Type : Single-Pole, Dual Relay
Product Features
Application : Private and Executive Offices, Conference Rooms, Classrooms, Restrooms, Storage Areas, Training Areas, Multimedia Rooms, Day Care Centers, Lounges, Retrofits, Bi-Level or A/B switching, Multi-location Switching
Color : Red
Grade : Commercial
Mounting : Wall Switch
Product Line : OSSMD
Sensor Technology : Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US)
Sensor Type : Occupancy
Time Delay : 30s-30m
Performance Specifications
Coverage (Sq.Ft.) : 2400
Pattern : 180°
Standards and Certifications
Listings : ETL/cETL listed, CSA, FCC and NOM. Can be used to comply with IECC, ASHRAE 90.1, and Title 24, Part 6 occupancy/vacancy sensing requirements
Title 24 Compliant : Yes
USMCA Compliant : Yes
Electrical Specifications
Frequency : 50/60Hz
Load Rating : Primary Relay: LED:10A @ 120V 10A @ 277V Fluorescent: 1200VA @ 120V 2700VA @ 277V Incandescent: 800W @ 120V - Secondary Relay: LED:10A @ 120V 10A @ 277V Fluorescent: 800VA @ 120V 1200VA @ 277V Incandescent: 800W @ 120V Motor: 1/4 HP
Neutral Wire Connection : Not Required
Power Consumption : 120V 140mW, 277V 360mW
Voltage : 120/230/277 VAC
Wiring : Primary Relay: No. 16 AWG leads: Line: Black, Load: Blue Ground: Green, White: Neutral (where provided) - Secondary Relay: No. 16 AWG isolated contact leads: (2) Red

Provides automatic lighting control for two separate banks of fluorescent, incandescent, or low-voltage lighting from a single unit.
The second relay is a manual-ON only with a maximum 30 minute time-out for maximum energy savings to comply with CEC Title 24.
Fits in a standard single-gang wall box and replaces two single-pole wall-switches for fast and easy installation; neutral and ground connection required for OSSMD-MD. OSSMD-GD does not require a neutral for installation.
Low-profile design eliminates obtrusive “scanning-device” look. Elegant Decora wallplates complement any interior for sleek aesthetics; uses Decora wallplates and coordinates with Leviton’s popular line of Decora wiring devices.
180° field-of-view provides approximately 2400 square feet of coverage, suitable for a variety of commercial areas.
Convenient pushbuttons provide manual-ON/OFF light switching of each load at any time.
Segmented Fresnel lens provides optimum sensitivity and performance. Designed with an extensive “minor motion” area where even slight body movements will be detected.
Vandal resistant PIR lens.
Adjustable horizontal field-of-view (PIR) may be adjusted between 180° and 60° of arc by using integral blinders located on either side of the lens. No masking tape required.
Manual-ON/auto-OFF mode for installations where manual-ON switching is required but auto-OFF switching is still desired for CEC Title 24 energy savings.
To comply with CEC Title 24, LED indicator light flashes when sensor detects motion to verify detection is active. Green flashes for ultrasonic, red flashes for PIR.
Time delay adjustment for delayed-OFF time settings of 30 seconds (for walking test), 10 minutes, 20 minutes, and 30 minutes. Allows customized adjustments to maximize energy savings.
Light sensor measures the ambient light in the room when it first detects motion and leaves the lights OFF (hold-off) if there is enough light in the room or turns the lights connected to the first relay ON if there is not enough light in the room.
Self-Adaptive technology eliminates callbacks for adjustments. Time delay and sensitivity settings are continually adjusted to occupant patterns of use in auto adapt mode.
Exclusive Walk-Through feature provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy.
Non-Adaptive Mode disables self-adjusting delayed-OFF time and walk-through feature in applica-tions where these feature are not desired. Optional manual adjustment for delayed-OFF time settings allows customized adjustments to maximize energy savings.
Vacancy confirmation; when the time out expires and the relay turns OFF, a 30-second vacancy confirmation exists to turn the relays back ON.
False detection circuitry.
U/S technology provides excellent minor motion sensitivity.
Ability to disable PIR or U/S for added flexibility.
Presentation Mode feature for slide or film presentations allows pushbuttons to turn lights OFF and keep them OFF while the room is occupied.
Exclusive Leviton High Inrush Stability (H.I.S.) Circuitry. Specifically designed to handle today’s high inrush electronic ballast loads and offer unmatched durability and service.
One unit can be used for 120V through 277V lighting. Compatible with both electronic and magnetic ballasts.
True zero-cross relay switches at the zero crossing point of the AC power curve to ensure maximum contactor life and compatibility with electronic ballasts.
